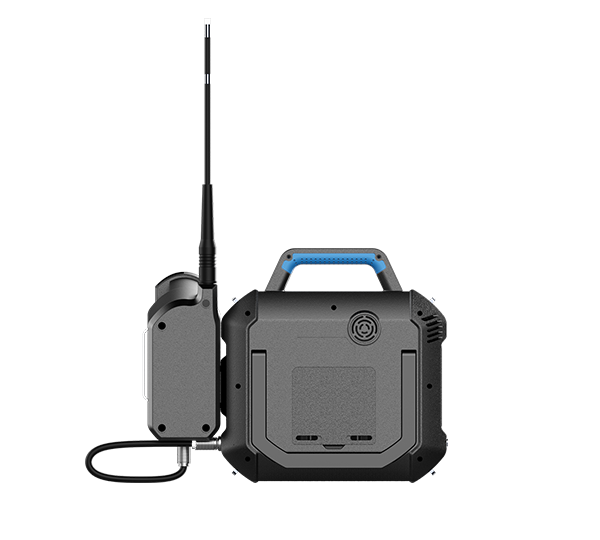

P-series High Resolution Videoscope Camera

  • High-resolution videoscope with 2,000,000 pixels
  • Articulating borescope by electronic magnetic rocker
  • 1.1mm, 1.7mm, 2.2mm, 2.8mm, 3.9mm, 6mm，8.4mm endoscope diameter probe, front, side LED, fiber+LED dual lens
Enquire Now!

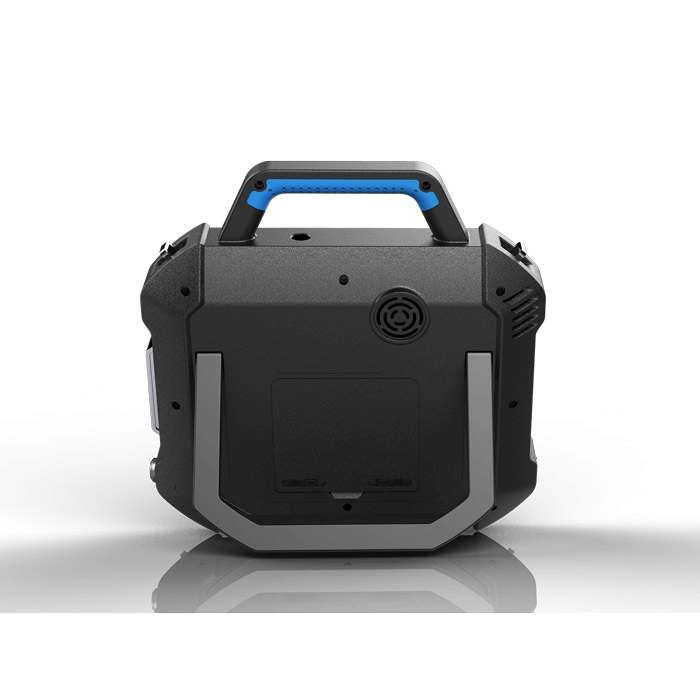

Yateks P Series Industrial Video Borescopes are modular systems with many unique features, including dual-view capabilities, 4-way motorized articulation, and HD touch screens. Yateks borescopes are available in various diameters, probe lengths, and focal lengths. With up to 2,000,000 pixels delivered from HD CMOS sensors, the Yateks P+ Series is suitable for inspection in various industries, including aerospace, aviation maintenance, overhaul, repair (MRO), automotive, and power generation.

2. Intelligent image processing system with the megapixels module to show the super clean image.

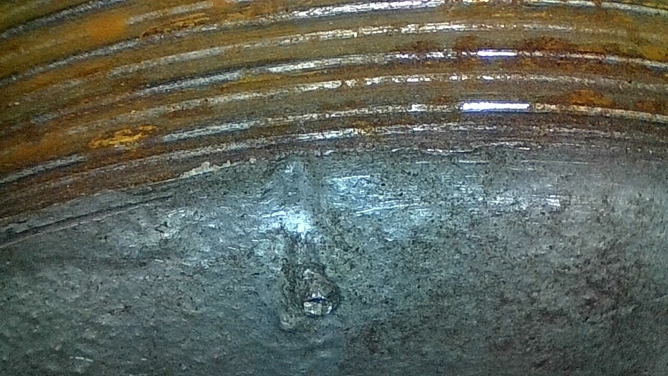

rusty casting

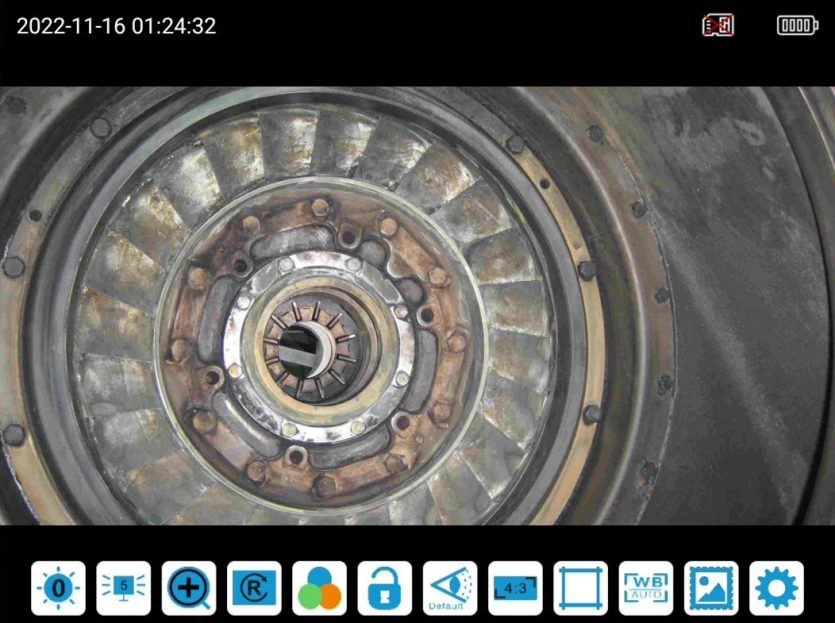

3. Brand-new user-friendly software interface, 8-inch high-resolution screen, the image is ultra clear,sensitive touch buttons, instant electric control joystick, precise positioning, easy and simple operationand, image and video annotation function.

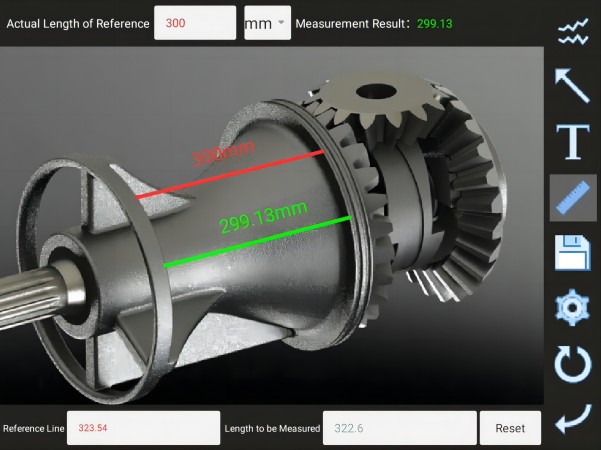

4. Relative measurement function to find the detection area quickly and precisely.

Relative measurement function to find the detection area quickly and precisely.

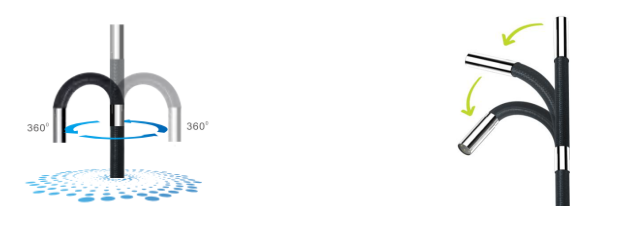

5. Electronic magnetic rocker which can adjust omnidirectionally for 360°. Step by step contrlling system provides precise camera location.

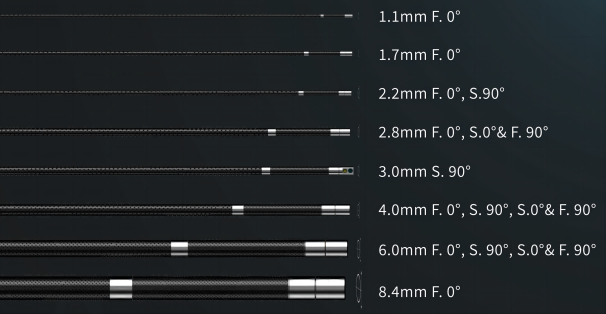

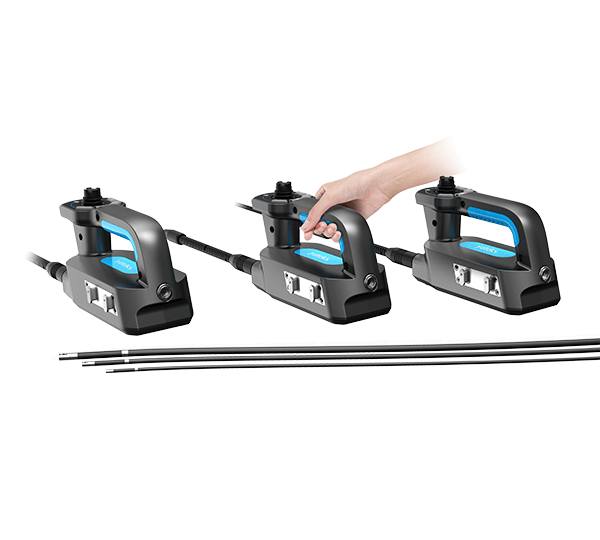

6. Side lens, dual lens, and interchangeable lens are available. Supports different options of insertion tube.

7.Type-C interface，HDMI output.

8. Multi-screen display, wireless, easy to share.

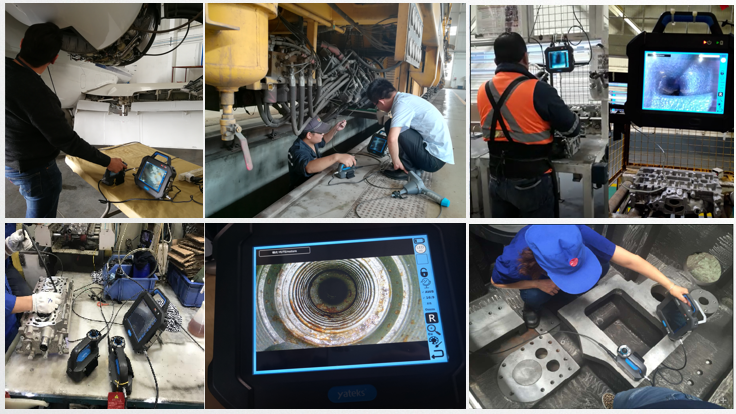

Application Field

Application field:Aviation & SpaceIndustry, Electrical Production and Construction,Railway, Ship, Construction Engineering , Automotive Manufacturing,Energy & Electricity,Automotive Maintenance.

Yateks P-series industrial endoscope is widely used for modern core industrial production and inspection for aviation, automobile, watercraft, electric and chemical.

Specification

Yateks P-series HD Industrial Endoscope

System Category Description
Dimension/Weight 246*321*123mm/2.3KG
Display screen 8″ IPS industrial HD touch LCD screen with resolution 1024*768(ratio 4:3)
Control Lever Electric rocker with lens able to rotate in 360-degree, automatic set, direction fine tuning adjustable
Functions Photography, video, brightness control, locking and fine-tuning
Storage 32G high-speed SD card （UP TO 128G）
I/O port SD card, VGA port (1024*768), charge and mini USB
Battery/Standby time Four 18650 Lithium batteries(replaceable)
Brightness control 5 degrees each for high and low brightness adjustment,10 degrees in total
Combining form Monitor + probe separable group
Compatibility Support different diameter probes
Software Operation system Real-time multitasking operation system
User interface Touch screen operation menu
File management Support image and video play, delete, format memo and naming
Image control Zoom in/out(1.0X-1.5X,5 steps),playback,picture freeze-frame,image reversal,mirror image
Image format/Video format JPEG, JPG/AVI(record date and time)
Language English/Chinese/Korean/German/Russian/Japanese
Color settings 4 modes for different applications
White balance Automatic/manual white balance
Exposure mode Automatic/manual/shutter/aperture exposure
Upgrade by SD card service pack
Operating environment Monitor working temperature -10～50°
video probe working temperature -20～70°
Relative humidity Highest 90%,no condensation
Waterproof Monitor IP54/video probe IP67

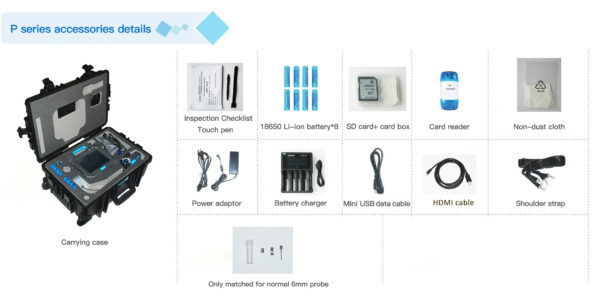

1 x Inspection Checklist

1x Touch Pen
8 x 18650 Li-ion Battery
1 x SD card+card box
1 x Card Reader
1 x Non-dust cloth
1 x Power adaptor
1 x Battery charger
1 x Mini USB data cable
1 x HDMI cable
1 x Shoulder strap
1 x Three small tools (for 6mm distal Led only)
