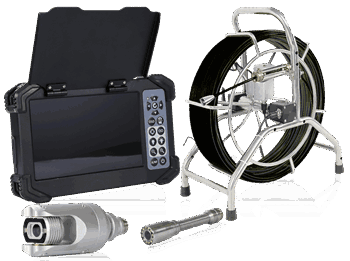

VD Pro High Definition Pipe Inspection Camera
- 7-inch touchscreen, dual-mode operation
- Two lens options available, up to 2,100,000 pixels, infinitely adjustable lighting
- Vertical cable reel system, supports ultra-long cables, precise metering
- Built-in high-capacity lithium battery, long-lasting power
The VD Pro High Definition Pipe Inspection Camera is a high-performance industrial pipe inspection camera designed for inspecting complex pipelines. It features a high-resolution camera, a vertical reel system for extending a 60-meter semi-rigid pushrod cable, and a precision metering device for accurate cable length control. Designed for long-distance and slightly curved pipelines, it delivers real-time, high-clarity images to detect defects such as corrosion, cracks, and blockages. Built for durability and advanced performance, it is an ideal solution for industrial applications in sectors like petrochemicals, power, and municipal engineering.
Camera lens
- 45mm Electrically Controlled Rotating and Focusing Lens
○ Focal length from 0 to ∞
○ 2,100,000 pixels
○ 2 Ultra-Bright LED Bead
○ Alloy and Stainless Steel
○ Fog-proof Lens
○ Collision-resistant Design
○ Full-View Unobstructed
○ Pan Angle 360° Unlimited Rotation
○ Tilt Angle 270°
- 18mm Color Wide-Angle Lens
○ 1,000,000 pixels
○ 8 high-brightness LED light sources
○ Color accuracy close to human eye perception
Lens protection
The lens offers IP68 protection, a sapphire glass cover, and a detachable protective shield for excellent wear resistance. Made of alloy or stainless steel, the 45mm lens features a collision-resistant design and anti-fog function, ideal for extreme environments.
Vertical cable reel system
The vertical cable reel system is crafted with high-quality materials and precision-engineered design, featuring a capacity of 60 meters of push-pull cable. It is equipped with a precise length measurement function, allowing users to accurately monitor the cable length in real-time. The system supports efficient deployment and retrieval, while incorporating anti-tangling and abrasion-resistant features to ensure reliable performance in demanding environments.
Large-capacity built-in battery
The device is equipped with a built-in 6600mAh high-capacity lithium battery, featuring high energy density and long-lasting performance, ensuring durability and providing over 5 hours of operation.
7-inch touchscreen
The 7-inch high-resolution touchscreen boasts clear detail display, features responsive and smooth touch control, enables seamless operation via both button and touch modes, and delivers an outstanding user experience.
Detachable light-blocking hood
Detachable light-blocking hood, supports multi-angle flexible opening and closing, prevents strong light interference, protects the screen.
Specification
VD Pro High Definition Pipe Inspection Camera
| Category | Parameter | Value |
|---|---|---|
| 45mm Electrically Controlled Rotating and Focusing Lens | Lens material | Alloy and Stainless Steel |
| Diameter | Φ45mm | |
| Camera Pixels | 2,100,000 | |
| FOV | 120° | |
| Light | 2 Ultra-Bright LED Bead | |
| Light Adjust | Infinite Adjustment | |
| Focus Type | Electronic Zoom | |
| Pan Angle | 360° Unlimited Rotation | |
| Tilt Angle | 270° | |
| IP Level | IP68 | |
| Other Features | Fog-proof Lens / Collision-resistant Design / Full-View Unobstructed | |
| 18mm Color Wide-Angle Lens | Diameter | Φ18mm |
| Camera Pixels | 1,000,000 | |
| FOV | 100° | |
| Light | 8 Led Lights | |
| Focus Type | Electronic Zoom | |
| IP Level | IP68 | |
| Vertical Cable Reel System | Type | Push-rod Cable |
| Length | 30m – 60m | |
| Diameter | Φ7mm | |
| Accessories | Cable Payout Counter | |
| Main unit | Display | 7 Inch HD Touch screen |
| Image Format | 1280*720 JPG | |
| Video Format | 1280*720 AVI | |
| Battery | Built-in Lithium Battery | |
| Battery Capacity | 6600mAh | |
| Working Time | ≥5h | |
| Working Temperature | -10℃-50℃ | |
| Storage | Standard TF Card: 64G, Maximum: 512G | |
| Language | English/Chinese/Japanese/German/French/Italian/Other languages | |

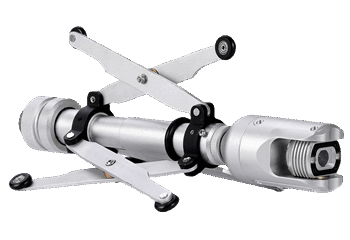

| Others | Accessories | Centering Variable Diameter Guide(Extra charge applies) |
